Choosing a Linear Shower Drain, A Practical Buyer's Guide
The puddle problem
Walk into most older bathrooms and you will see the same thing. A round waste sits in the middle of the shower floor, surrounded by four small triangles of tile all sloping inwards. It works, more or less. But it is fiddly to tile, it leaves little flat spots where water sits, and over time those flat spots grow a grey ring that no amount of scrubbing fully removes.
The reason is simple. A centre waste asks the floor to fall in four directions at once. Every tile has to be cut and bedded at a slightly different angle. Even a good tiler ends up with compromises, and if the shower floor uses larger format tiles, the compromises get worse because big tiles do not want to curve.
A linear shower drain removes that whole problem. The floor only has to fall one way, towards a single line. Tiles can run straight and full size. The low point sits where you put it, usually against a wall or at the entry to the shower. Water goes there, keeps moving, and the floor dries properly between uses.
How a channel drain works
A linear channel is a long stainless steel trough that is set into the floor before waterproofing and tiling. Water runs across the tiled surface, drops over the edge of the channel, travels along the trough and exits through an outlet connected to your waste pipe.

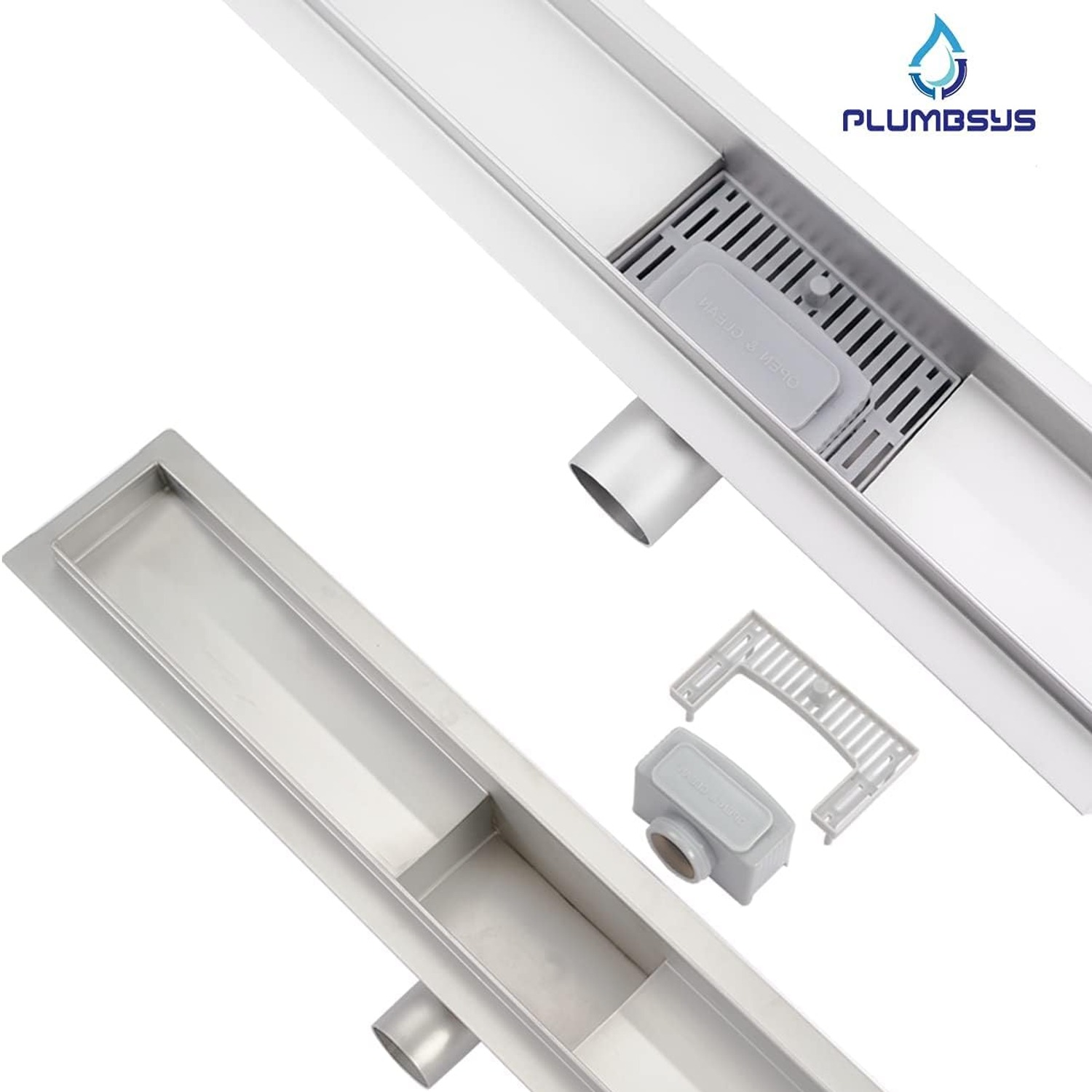

Inside that outlet sits the siphon. This is the part that does the quiet, important work. It holds a small body of water that acts as a seal between your bathroom and the drainage system. That seal is why your bathroom does not smell like a drain. The siphon on this unit also includes an odour blocker and a hair catcher, so hair is trapped where you can reach it rather than halfway down a pipe where you cannot.
Flow matters too. This model is rated at up to 36 litres per minute. For context, a household shower head typically delivers a fraction of that, so the channel has plenty of headroom. It only becomes a real consideration in rooms with twin heads or a large rain head, and even then the figure is generous.

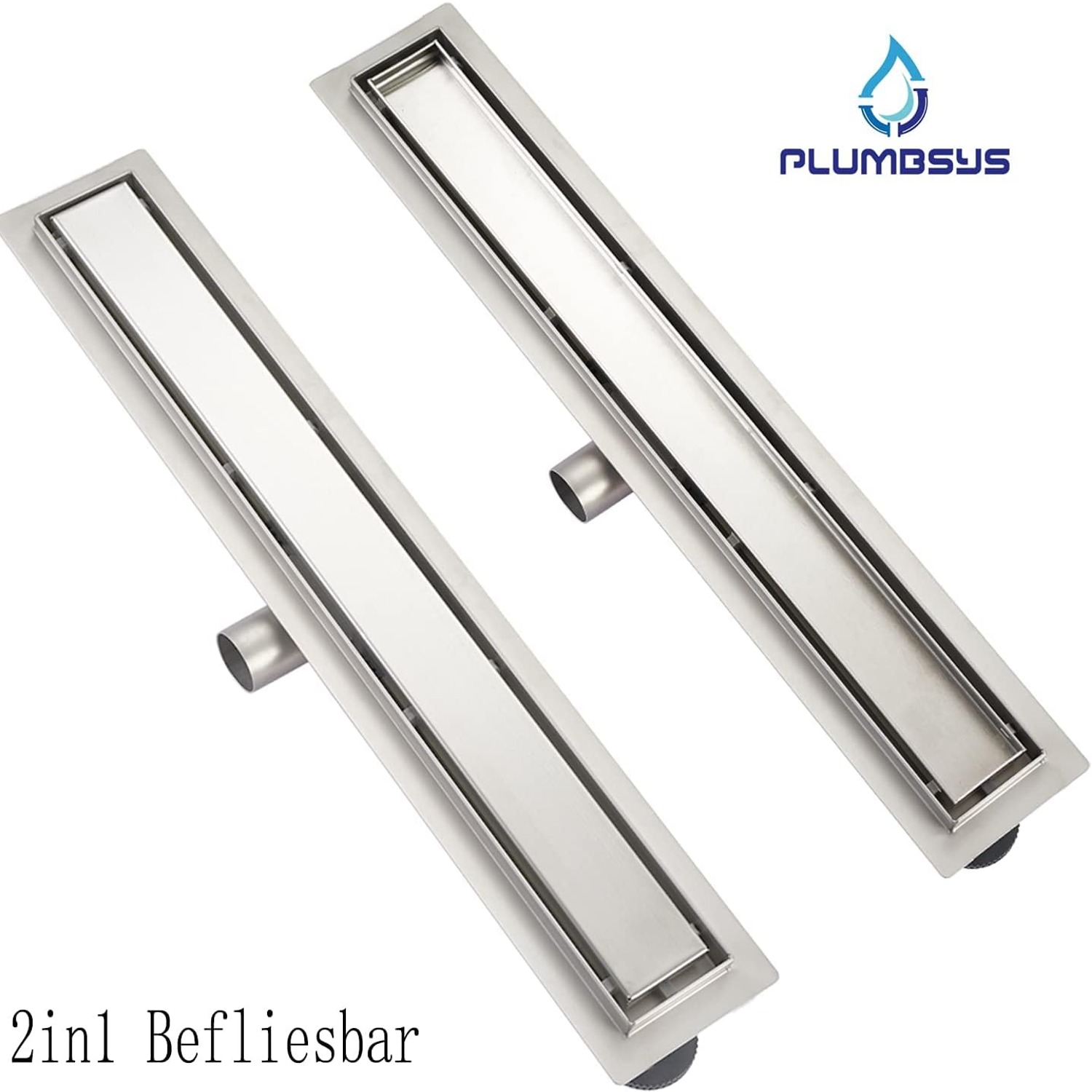

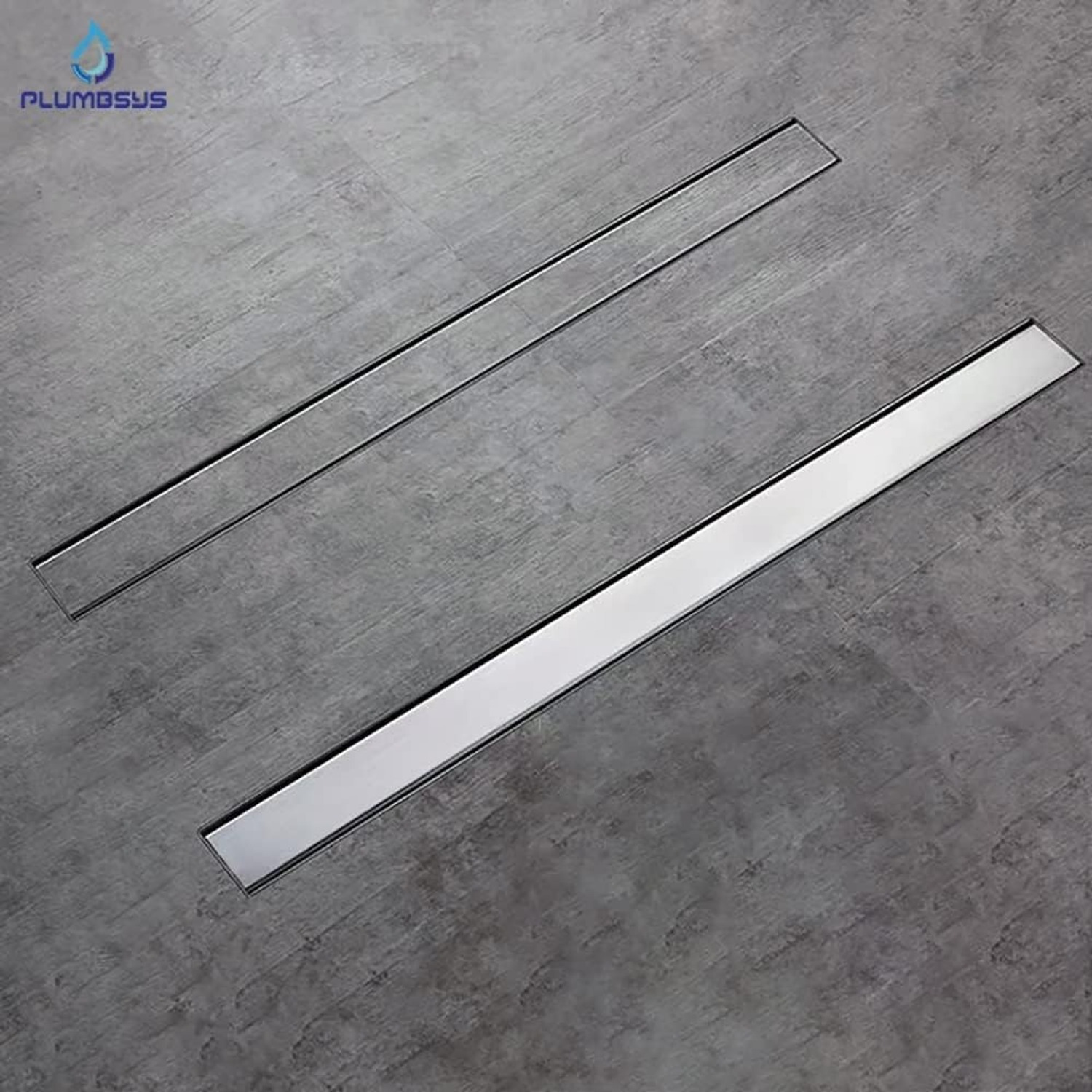

The cover sits on top. On this unit it is a two-sided tileable cover, which means one face takes a tile insert and the other shows the stainless finish. Flip it one way and the drain reads as a thin grout line. Flip it the other and you get a clean steel strip. You do not have to decide at the point of purchase, which is genuinely useful if the tile selection is still being argued about.
Who this suits
This drain makes most sense for three kinds of project.
The first is a straightforward shower renovation where the old centre waste is being moved or replaced. A 50cm channel fits the standard shower bay found in most homes and gives the tiler an easier job.
The second is a curbless or walk-in shower. Without a hob, the floor has to manage water with fall alone, and a single-direction fall into a line is the most reliable way to do that. This is why channel drains dominate in that style of build.

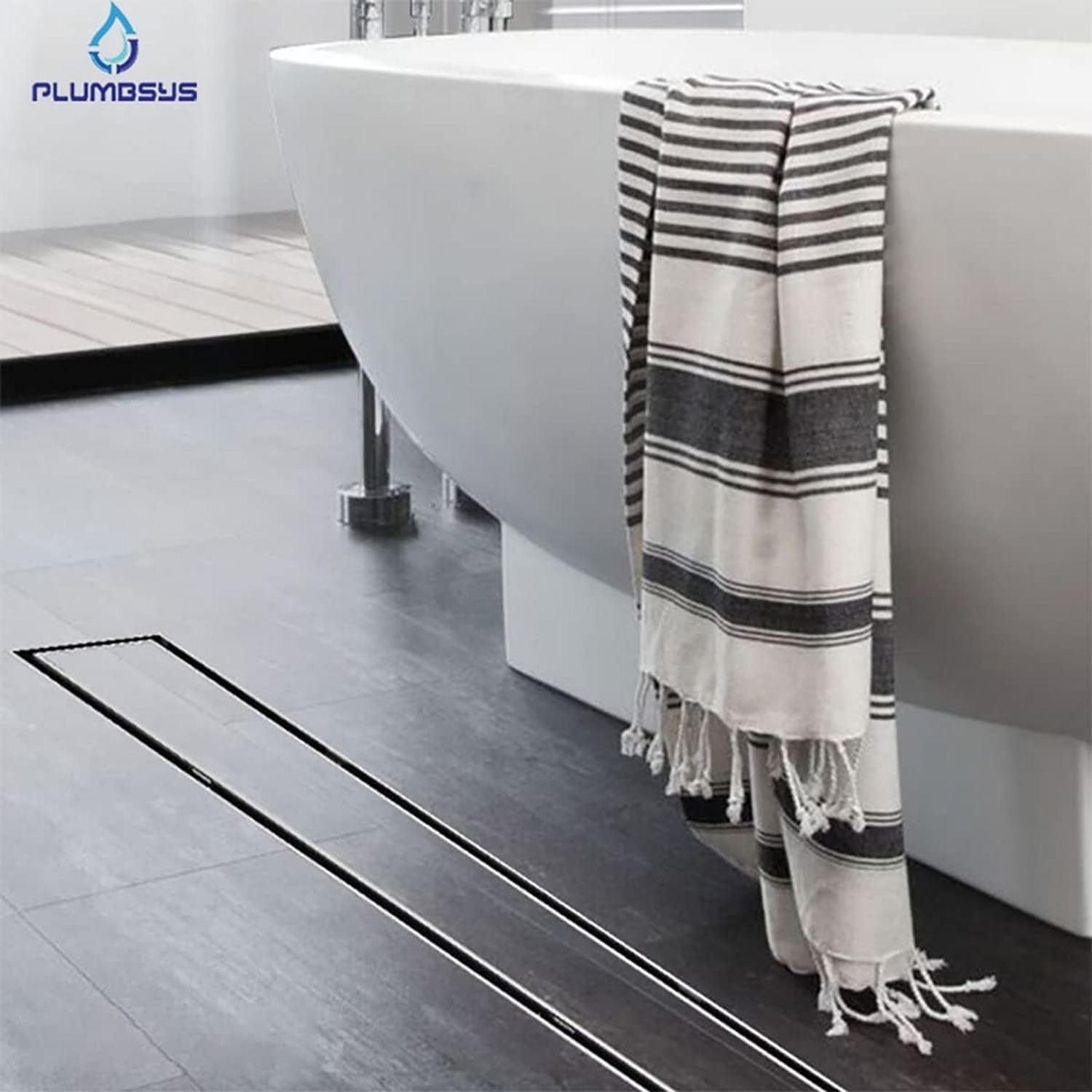

The third is a full wet room, where the whole floor is tiled and waterproofed. Here the channel usually sits at the lowest point of a broad, gentle fall. The tileable cover is particularly handy in a wet room, because a visible grate in the middle of a large tiled floor can look like an afterthought, while a tiled insert just looks like a grout line.
Who it does not suit? Anyone looking for a drop-in replacement with no building work. A channel drain is not a swap-out part. It is set into the floor build-up, and that means screed, membrane and tiles all have to be coordinated around it.
Reading the specs that actually matter
Shower drain listings are full of numbers. Only a few of them change your decision.
Length. This one is 50cm. The channel does not need to span the full width of the shower. It needs to sit at the low point and be long enough to take the flow, which 50cm comfortably is for a single shower head.
Material and build. 304 stainless steel is the standard for wet areas because of its rust resistance. Just as important is how the body is joined. Welded seams, as used here, are stronger and less likely to develop a leak path than pressed or clipped joins. The 300kg load rating is a decent indicator of how solid the body is under foot.

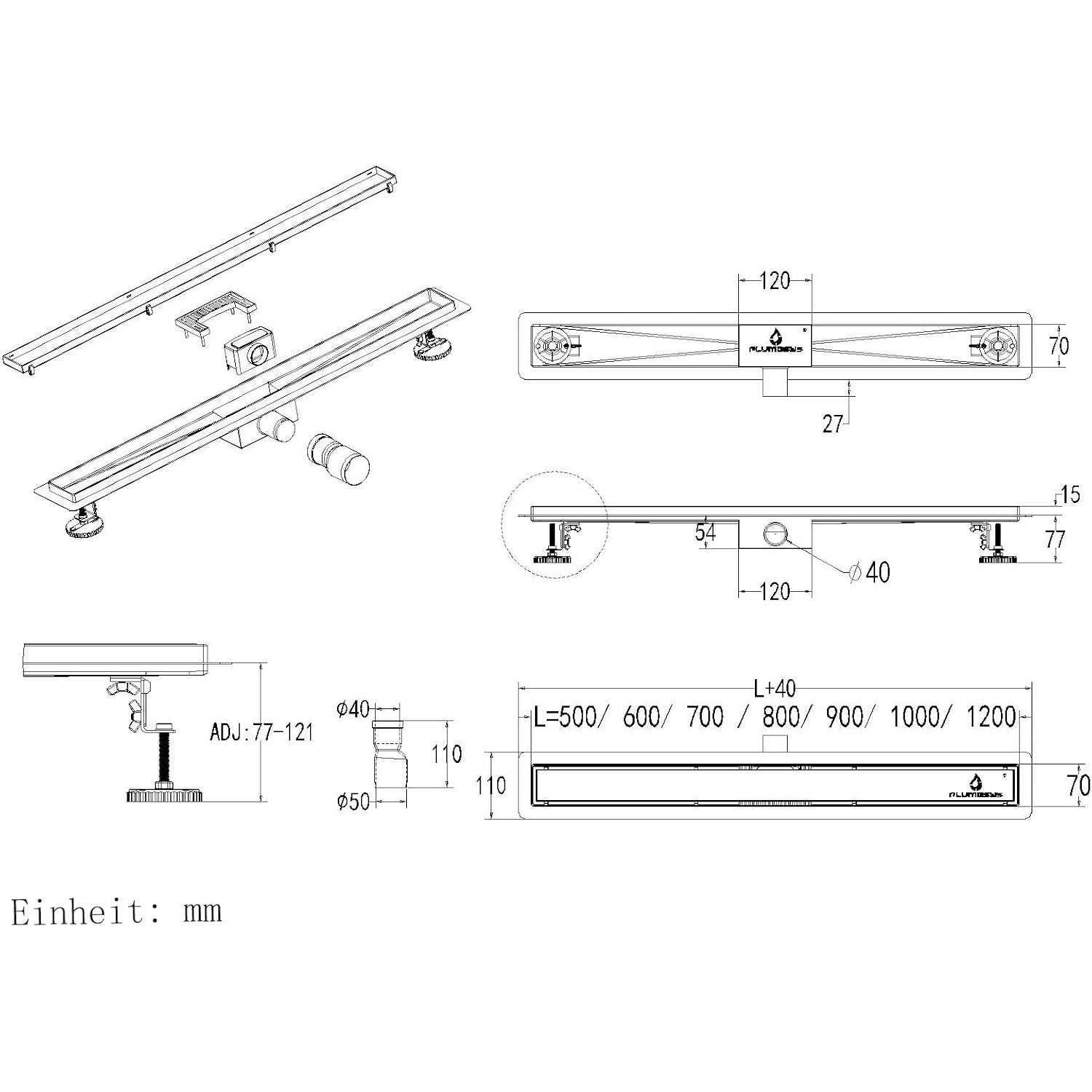

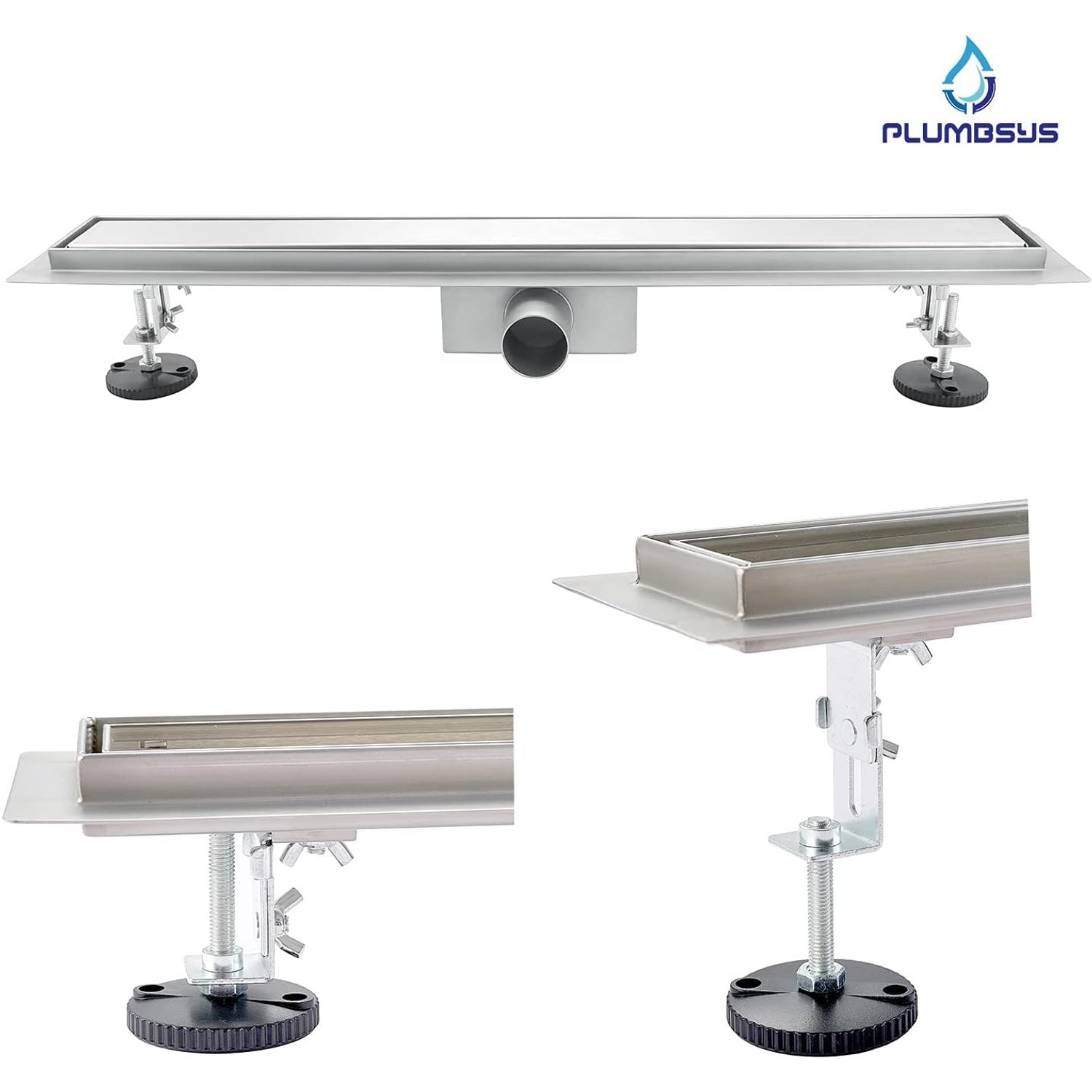

Height adjustment. Where support feet are fitted, this unit adjusts from 77mm to 121mm. That range is what lets your installer set the channel dead level and at the right height for the finished floor. Without adjustment, you are at the mercy of the screed depth you happen to have.

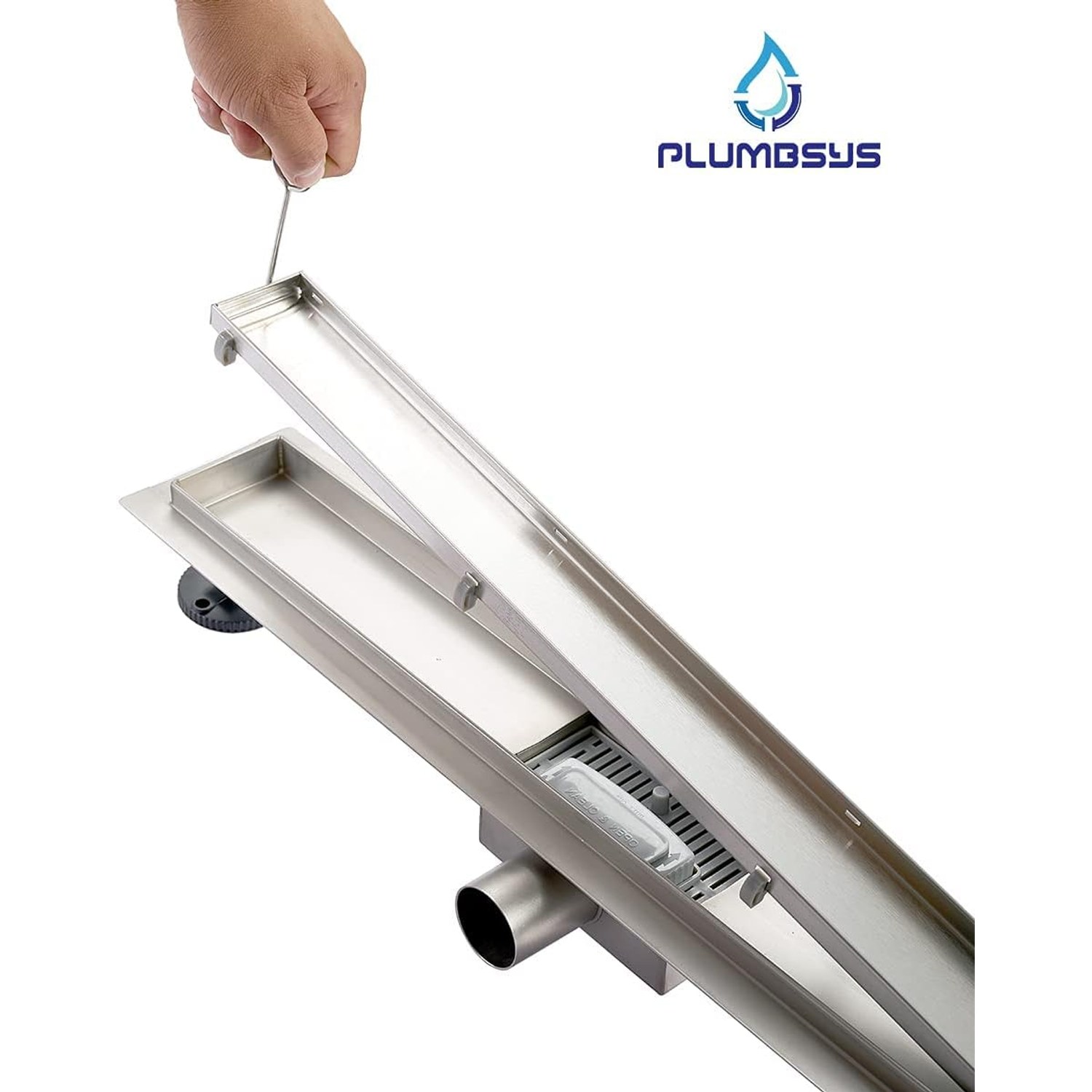

Serviceability. Check that the parts you need to clean come out by hand. On this drain the top cover, filter and siphon all lift out with no tools. That is the difference between a drain you maintain and one you ignore until it blocks.
Note that overall packed dimensions and product weight are not specified by the maker. If your installer needs those figures to plan the rough-in, ask us before ordering and check the outlet details against your existing waste pipe.
Installation, honestly
This part deserves plain speaking. A linear drain rewards good installation and punishes rushed installation, and most problems people blame on a drain are actually floor problems.
The sequence generally runs like this. The channel is positioned and levelled using the adjustable feet. The outlet is connected to the waste pipe. Screed is laid to create an even fall towards the channel across the whole shower floor. The waterproof membrane is applied and dressed into the channel flange. Then tiling goes down, with the tile insert cut to fit the cover if you are going for the hidden look.
Two things to get right. The fall needs to be consistent, because a linear drain cannot fix a flat patch two metres away. And the membrane has to be properly bonded to the channel flange, since that junction is where water will look for a way out.
If you are comfortable with tiling but not with waterproofing, get a professional for the membrane at minimum. It is the cheapest insurance in the whole bathroom.
Keeping it clean
Maintenance is light but it is not zero. Hair is the enemy of every shower drain ever made.
Every few weeks, lift the cover, pull out the filter and the siphon, and rinse them under a tap. Clear the hair catcher. Wipe the inside of the channel with warm soapy water and a soft cloth, then dry the steel so you do not leave water spots. That is the whole routine, and it takes a couple of minutes.
Skip the bleach and the aggressive drain chemicals. They are rarely necessary when hair is being cleared regularly, and they can dull stainless steel over time. Steel wool and abrasive pads will scratch the finish, so leave those in the cupboard.
One small thing worth knowing. If a shower goes unused for several weeks, the water seal in the siphon can evaporate and odours may come back. Running the tap for thirty seconds refills it.
The short version
A 50cm linear shower drain fixes the thing most people quietly dislike about their shower floor. It lets the floor fall one way, keeps tiles running straight and full size, and takes the water away fast.
This Plumbsys model covers the practical points well. 304 stainless steel with welded seams, a 300kg load rating, up to 36 litres per minute of flow, a removable siphon with an odour blocker and hair catcher, and height-adjustable feet from 77mm to 121mm where fitted. The two-sided tileable cover means you can hide it in your tile or show the steel, decided on the day.
Measure your shower bay, plan the fall, and get a qualified installer to handle the screed and membrane. Do that, and the drain becomes the part of the bathroom you never have to think about again.
